Sveaverken F100 Auto Steer System

SVEAVERKEN PRECISION AG TECHNOLOGY

Free Quote

Previous Next
  • Overview & Features
  • FAQ
  • SPECs


Your Precision is Our Mission



±2.5cm
Accuracy



Modular
Design



30min
Installation



Guidance
Line Assist



Terrain
Compensation



Online Support
& OTA

Farming Made Easy

  • Control Terminal
  • GNSS Receiver
  • Electric Power Steering



10.1" touch screen;
Built-in WiFi, bluetooth, and radio;
Displays real-time operation status.




RTK base station
New modular design;
 Capable of IMU functions;
 Obtains and transfers the vehicle's position, orientation, and attitude to the control terminal.


​


Electric steering wheels available;
Inter-changeable between auto steer and manual control.

  10.1" touch screen;

Built-in WiFi, bluetooth, and radio;

Displays real-time operation status.




Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

30min Installation

With modular design, F100 is easy to set up on a multitude of Ag machines within 30 min .

For All Farming Seasons

Harrowing
Sowing
Spraying
Harvesting

  Fast Mode

Get your everyday operation started quickly with essential functions that you don't want to miss.

Terrain Compensation

Keeps passes straight and accurate on sloping and rough terrains.

±2.5cm Accuracy

With high-precision navigation technologies, F100 easily assists your tractor to deliver 2.5cm accuracy from pass to pass, under conditions of poor visibility and even at night.

User-friendly HMI

18 languages supported

Real-time Display

real-time display



Speed Display

Displays the vehicle's real-time speed.

Offset Display

Tells the real-time offset value.

Area Metering

Calculates the worked area under the auto steer and the manual modes respectively.

Speed Alert

Prompts alerts when the preset speed is exceeded.

Guidance Line Assist

  • Create Straight Line & Curve
  • Guidance Line Shift
  • Guidance Line Sync

Straight line auto steer / Curve auto steer.

Set the direction and distance to shift the current guidance line.

Share guidance lines for increased efficiency and complete field coverage when two tractors are working in the same field.

​Advanced Mode

Upgrade your F100 to unlock Field Management, U-Turn, Implement Library, Task Continuation, and more.

*Unlocking fee needed, contact your local dealer for an activation code to unlock all advanced features.



Field Management

Create a field profile to keep track of the boundaries, guidance lines, and tasks you've performed.

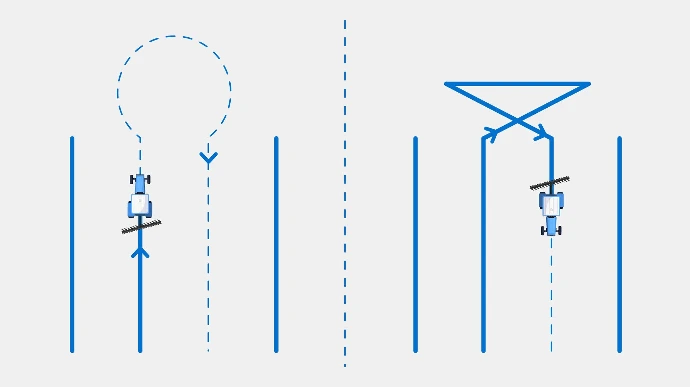

U-Turn

Go hands-free from start to finish with U-Turn either by


1. Importing straight AB lines to the system for it to take the lines and boundaries into account and work out a path that covers your field with the highest coverage rate.
or
2. Simply letting the system automatically plan a path that suits your boundaries and covers your field with the best coverage rate possible.

*For both of the modes above, automatic headland closing is available – F100 rounds up the operation with one or two laps along the headland.

Implement Library

Add up to 10 implements and their parameters to Implement Library, so you can get started quickly with the right equipment.


Task Continuation

With your historical data in mind, F100 guides you to the point where you have left with a red line, so you can re-engage with your unfinished task.

Operation Mode Compariso​n


F100
Fast Mode

F100
Advanced Mode

Accuracy 2.5 cm 2.5 cm
Guidance line Straight line & Curve Straight line & Curve & Pivot
Operation data recording ● ●
U-turn ○ ●
Field management ○ ●
Task continuation ○
●
Implement library ○ ●

*For detailed comparison between Fast Mode and Advanced Mode, please refer to SPECs.

​ ​ Additional Features



NMEA

Transfers accurate position and speed info from one control terminal to implements.

*Requires a NMEA cable. Sold separately.


WiFi Camera

Keeps an eye on blind spots and saves you from looking back and forth when installed at the back of the vehicle.

 *Requires a WiFi Camera. Sold separately.

Ultra-low Speed

Runs at a speed as low as 0.1 m/s without compromising accuracy. Ideal for planting potatoes, sugarcanes etc.

*Requires a hall angle sensor. Sold separately.

Extensive Compatibility


Compatible with mainstream tractors, harvesters, rice transplants, and planters to support all farming seasons.


If I buy a F100 auto steer system, can I upgrade to the F100 advanced mode later?

Sure, if you need to have an advanced mode, please contact Sveaverken and purchase an advanced package, our AE team will help you to upgrade.

If I want to upgrade to the F100 advanced mode later, do I need to buy another system?

No, no need to change your hardware. An advanced software package is your choice.

What is the difference between F100 and F100 advanced mode?

With advanced mode, more functions are available for you, such as: field management, task continuation, implement library, U-turn, pivot guidance line mode, path numbering etc.

Is the Autosteer compatible with various tractor, sprayer, spreader and combine brands?

Yes, it' compatible with 90% of the brands of tractors, rice transplanters, sprayers, and harvest, no matter front wheel, rear wheel, four-wheel drive type.

Does the system have to be connected to the hydraulic system?

No, the system uses a high-torque electric steering wheel and works with GNSS receiver

Do I have to change the steering wheel?

Yes, all of the components have to work together.

Does your autosteer require a portable antenna/ base station in the field?

If you don't have a NTRIP provider in your area, you will need one base station. We also offer our Sveaverken base station later.
We're working on the SBAS connection. If you don't need a high accuracy, SBAS is free for you and deliver 20-30cm accuracy once it's available.

What languages does your system support?

Currently 18 languages are available: English, Turkish, Thai, Simplified Chinese, Traditional Chinese, Korean, Russian, Spanish, Hungarian, Finnish, Swedish, French, Add German, Czech, Portuguese, Serbian (Latin), polish and Romanian

When new functions are available, do I have to buy a new display?

You just need to upgrade the system online if we only update the software. However, if there is any other changes or updates on the hardware, please purchase a part as needed.

Do I need to pay for new functions?

Some new functions will be free. While, some of them, such as the upcoming ISOBUS VT/TC, need to pay to unlock.

How can I get aftersale support if I buy your system?

Sveaverken provides online technical supporting and trouble shooting ASAP if any issue occurs.

Is there a warranty?

Yes, please refer to Sveaverken Autosteering Kit Warranty Policy

For dealers:
· 2 years for core parts, like Control Terminal, Steering Wheel, GNSS Receiver
· 1 year for complete machines.
· 1 year for auxiliary parts and cables, like Angle sensor module, connection cables.

For customers:
· 1 year for all parts and complete machines

Can it work with the existing valves so I don't need to buy the steering wheel?

No. The system needs to work with the electrical steering wheel.

Is it difficult to learn the system?

No, it is easy to use! We will provide several helpful videos once you buy our system to help you.

What correction signals does your Autosteer kit use?

1. For RTK, we provide correction signal through NTRIP and Base Station;
2. For SBAS, we provide correction signal through WAAS, EGNOS, MSAS, SDCM.

Is there a platform where I can design the AB lines and then import them to your system?

No, AB lines still need to be settled with your tractor currently. But guidance line sync function allows you to share the guidance lines with multiple Sveaverken auto steer systems.

I don't know where to update, can you help me?

Step1: Contact Sveaverken and send us the SN of your control terminal through [System Setting-About-SN];
Step2: Tap [System upgrade-Detect] after confirmed with our AE team;
Step3: Upgrade the system when network coverage is available.

Control Terminal


Size 275×180×40 mm
Display 10.1'' inches >500nits LED screen; 1280*800 pixels
Power Supply 9V-36V
Operating Temperature -20 ℃~70 ℃
Storage Temperature -40 ℃~85 ℃
Waterproof & Dustproof IP 65


GNSS Receiver


Frequency GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5b
Size 162*78 mm
Operating Temperature -20 ℃~+70 ℃
Storage Temperature -40 ℃~+85 ℃
Waterproof & Dustproof IP 66


Electric Steering Wheel



Size 410 mm
Power Supply 12V/24V
Maximum Torque 20 Nm(12V) / 30 Nm(24V)
Waterproof & Dustproof IP 65


Fast Mode vs Advanced Mode
Function Types Functions Fast Mode Advanced Mode
Guidance line Straight line ● ●
Curve ● ●
Pivot ○ ●
Operation control Guidance line translation ● ●
Path numbering ○ ●
Display offset under manual mode ● ●
Mark the edge ● ●
Field management ○ ●
Real-time speed display ● ●
Guidance line synchronization ● ●
Task management Recording operation data ● ●
Task continuation ○ ●
GNSS signals settings Mobile network RTK-ntrip ● ●
RTK: base station mode ● ●
Asset library Implement library ○ ●
Implement control NMEA ● ●
System settings WiFi Camera ● ●
Demo mode ● ●
Special Functions Uturn ○ ●
Manual intervention of steering wheel suspension ● ●
Ultra-low speed mode ● ●
Slope Mode ● ●
