Sveaverken F200 Max Auto Steer System
Beyond the basics.
Bulit for professionals.
With a larger display, wiring harness for stability, revised camera and steering wheel, the F200 Max Auto Steer System is built for the most demanding of users. Designed for farmers who prioritize accuracy, value, and a premium smart agriculture experience, its robust hardware core integrates effortlessly with a suite of accessories, empowering you to build a truly advanced and more precise farming solution.
12.1 inch screen, a better ISOBUS experience.
When it comes to ISOBUS, bigger truly is better. With a large, clear 12.1-inch high-definition touchscreen and doubled onboard storage (now 16GB), the F200 Max gives you all the space you need to work with, both visually and in performance. Implement controls and settings are easier to access, adjust, and monitor on the fly.
F200 Max Control Terminal (Front)
F200 Max Control Terminal (Back)
ISOBUS UT
One screen, everything you need.

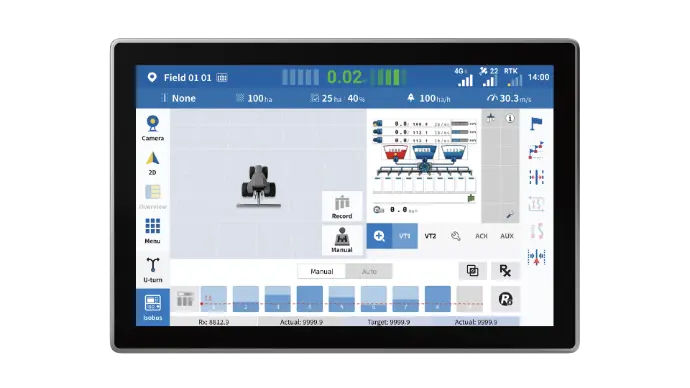

A more refined ISOBUS UT experience. Support for full-screen UT display alongside a mini navigation window, allowing for status and field positioning at all times. Whether you’re configuring parameters or monitoring task progress, everything stays clear, responsive, and close at hand.
ISOBUS TC-GEO
Smarter input, all automatic.
Take precision to the next level with Variable Rate Application (VRA). TC-GEO adjusts your implement’s output in real time based on prescription maps or sensor input—no manual manuever required.
Once a prescription map is loaded into the terminal, the system reads geospatial zones and automatically modifies application rates as the tractor moves through the field. All from one screen!
*Note: Prescription maps can be generated within the Sveaverken Farm Management System.
Smart Input with Prescription Maps
One Screen, All in Control
Variable Rate in Action
ISOBUS TC-SC
Make every pass count.

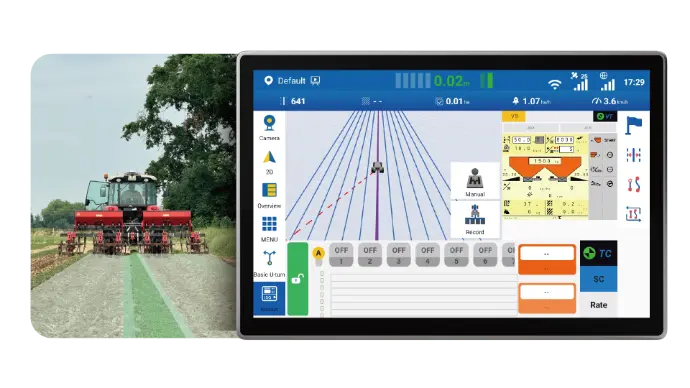

Section Control helps you optimize input use by
automatically switching implement sections on
or off based on your real-time positioning.
Simply define your field boundaries and section layout,
and drive. The system tracks your location in real time
and triggers each section precisely where needed,
saving resources every step of the way.
*F200 Max now supports ISOBUS UT/VT, TC-BAS, TC-SC, TC-GEOand AUX-N compatibility. (AEF Certified)
Stronger wiring, smarter integration.
Stronger wiring, smarter integration.
Reinforced wiring, ready for more.

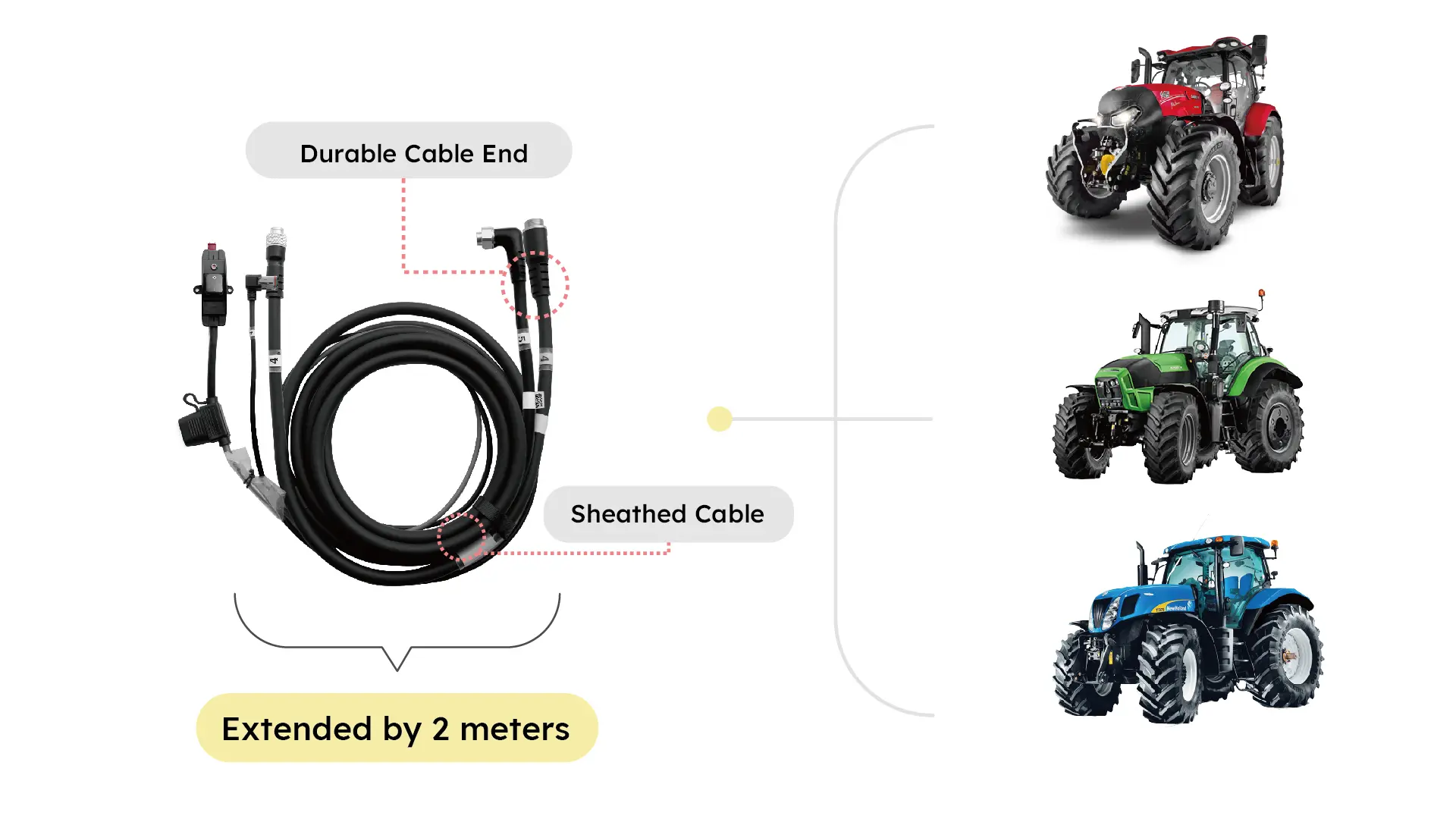

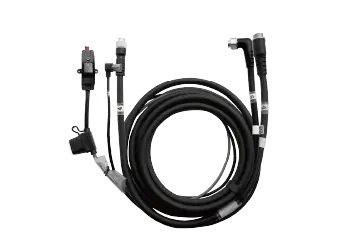

F200 Max features refined cable design for a smoother installation and a more reliable day-to-day experience. The main harness is extended by 2 meters to better fit larger tractors and simplify routing. All key connection points now feature molded connector protection, reducing wear and minimizing exposed wires.
Auto acre recording.
Track it all without a single touch. With support for both the Acre Recording Sensor and Lift Sensor, your implements can detect work start and stop actions automatically—ensuring accurate area tracking with less operator input.

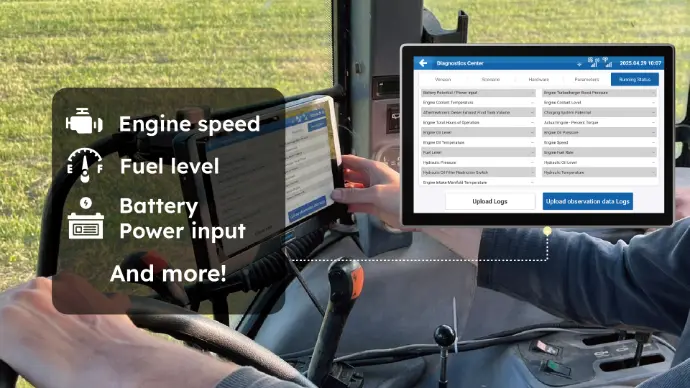

Know what's happening under the bonnet.
With a Sveaverken WiFi CAN module madefor live On-Board Diagnostics, check yourvehicle's real-time status (RPM, engine load, temperature, and more) all via the F200 Max terminal.
Better visibility. Work safer.

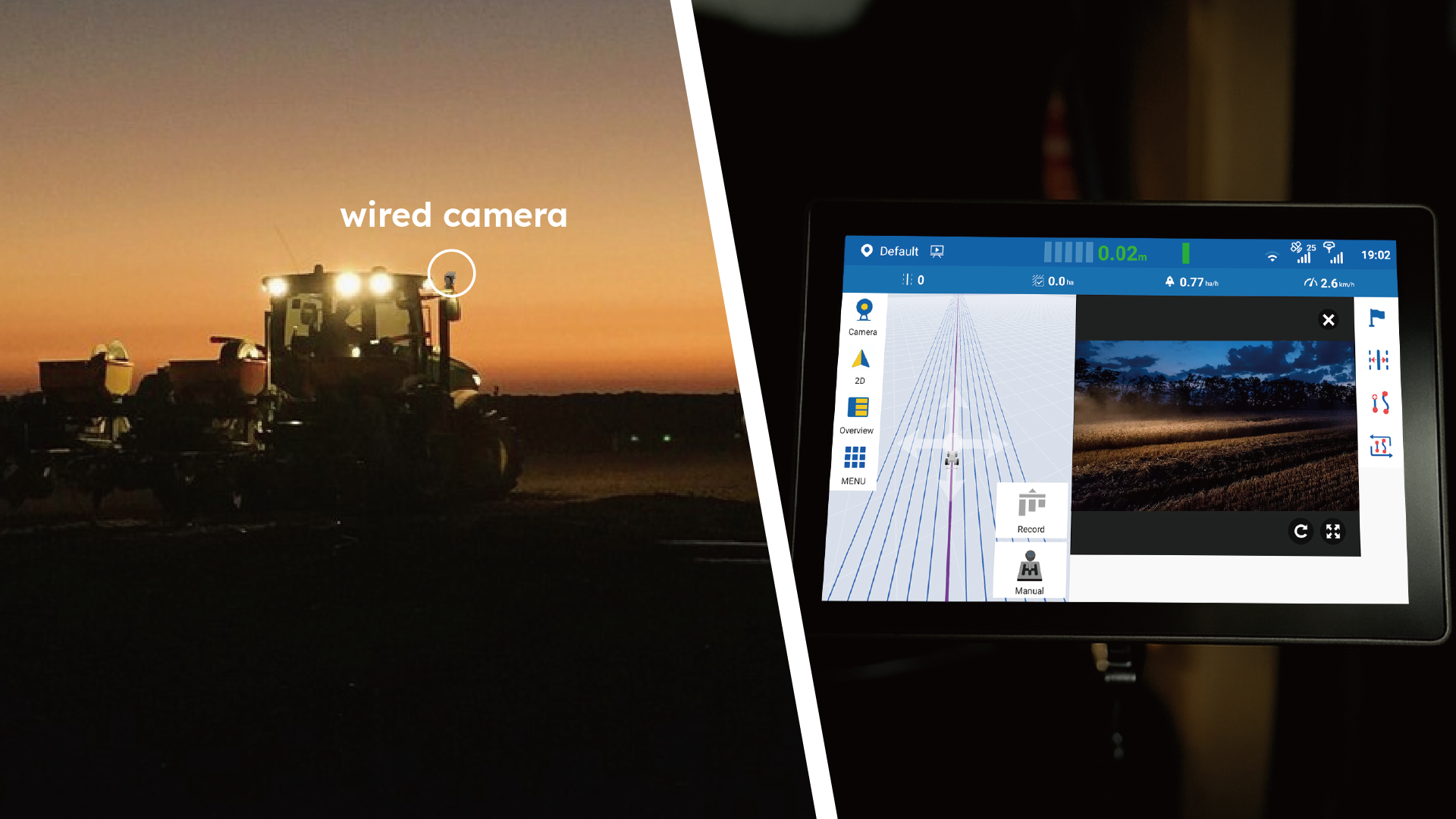

F200 Max supports both wired and wireless cameras, giving operators a full view of your implement and surroundings. From tight headlands to nighttime work, visibility and safety are always covered.
Manual driving when you need it.
Refined steering wheel for better handling.

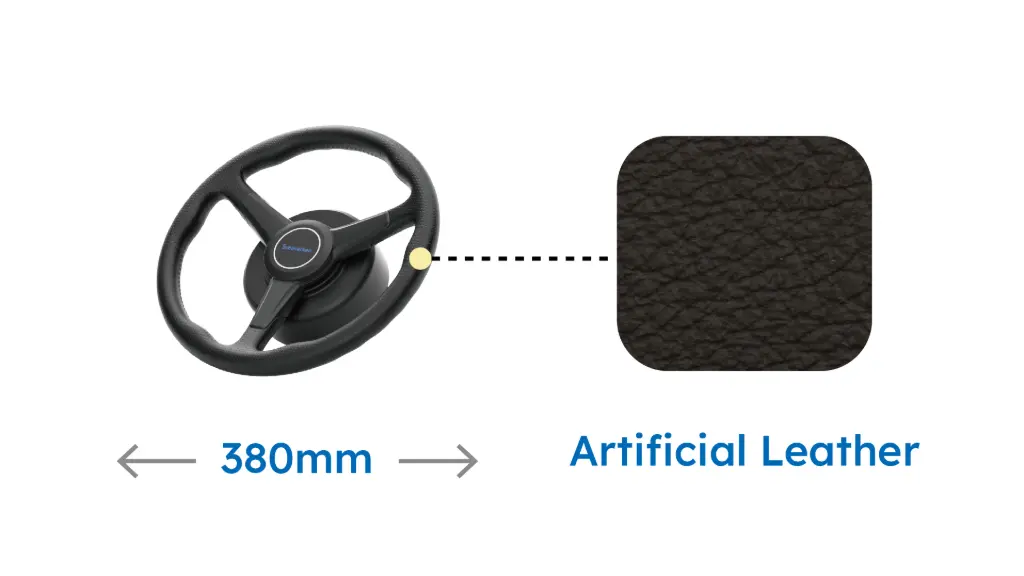

The F200 Max features a newly optimized 380mm steering wheel, more compact for easier handling, trimmed with leather for a better grip, and designed to free up cabin space for a more comfortable driving experience.
Manual intervention ready.
In dynamic field conditions, take over steering manually at any time, without needing to exit auto mode by touching the screen. F200 Max recognizes manual inputand responds immediately, offering seamless control whenever you need it.
Electric power steering.
Switching to manual no longer means heavy steering. When the system detects manual input, electric assistance is automatically activated, reducing steering resistance and minimizing driver fatigue, especially during headland turns or U-turns.
Seamlessly switch modes.
The Easy Switch module allows users to toggle between auto and manual steering modes with asimple press of a button or a tap on the foot pedal.
Precision from start to finish.
Maintaining accuracy as always.
Maintain stable accuracy down to 2.5 cm—even in uneven or challenging terrain. With broad compatibility across a wide range of agricultural vehicles, the F200 Max delivers data-driven precision tailored to every field and task.
Plan ahead with smart paths.

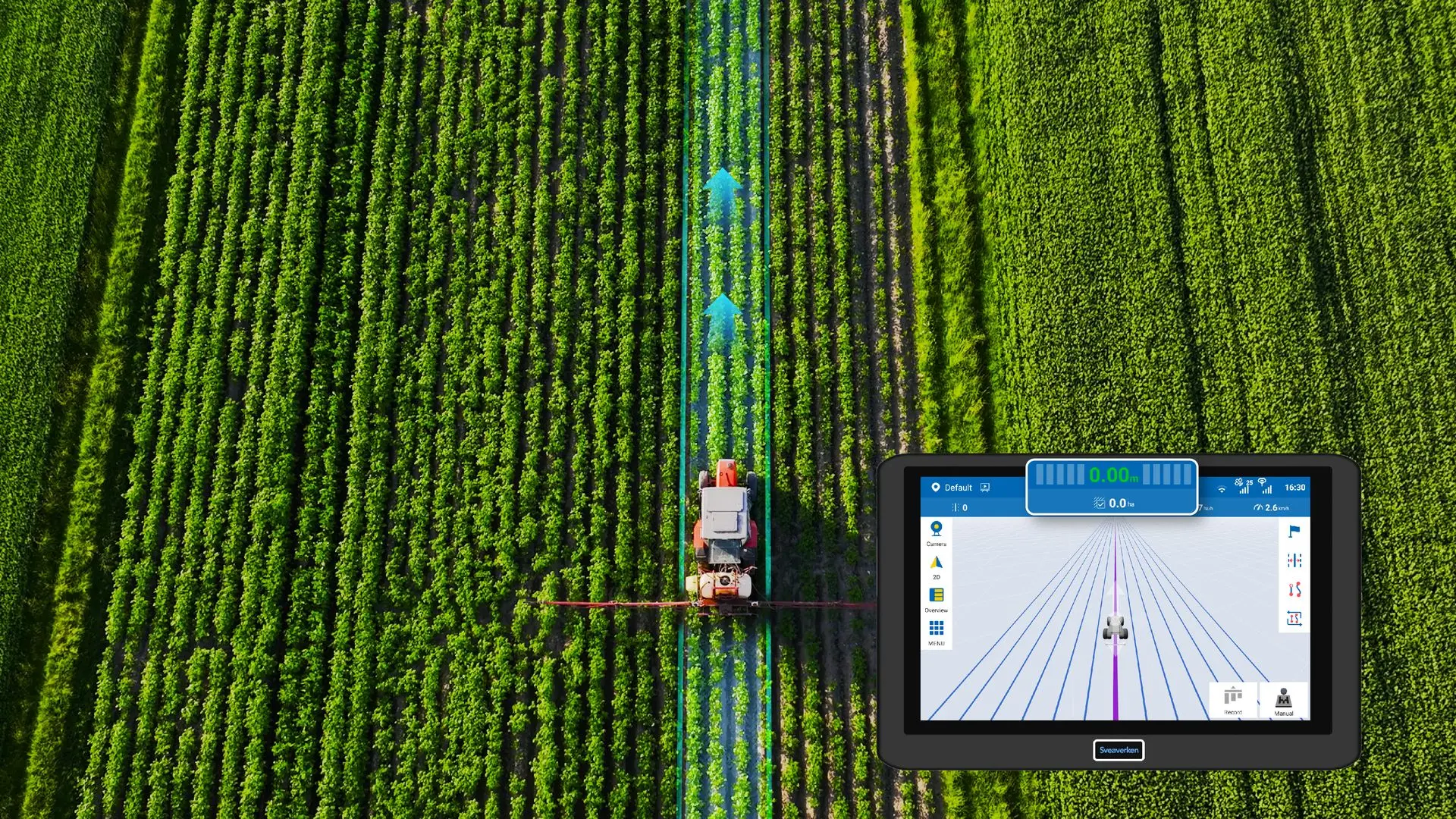

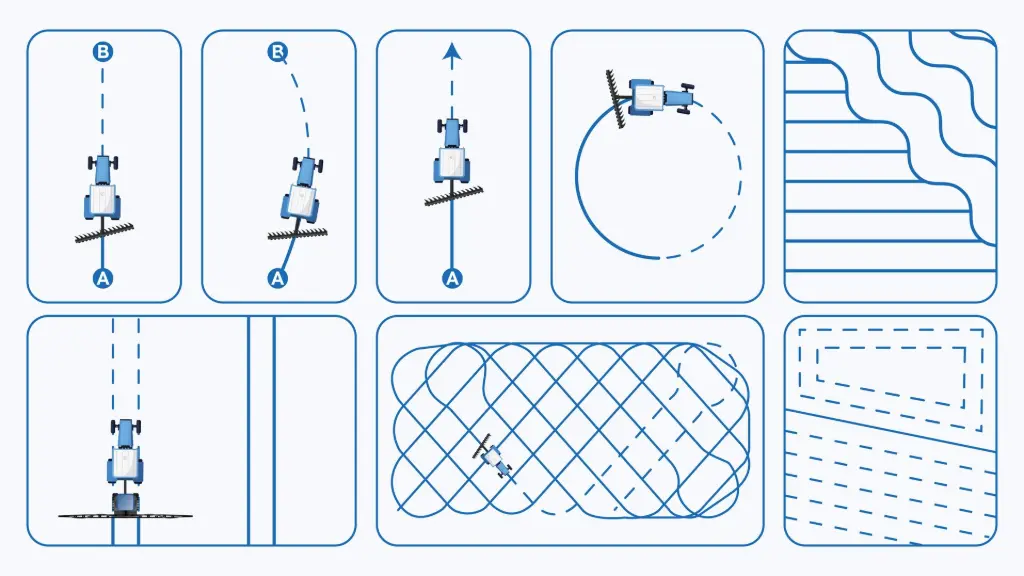

Select from multiple guidance line types to match your field layout and operational needs: AB Straight Line, A+ Line, Pivot, Curve, Line Groups, and Combination Lines. These flexible options help you pre-plan paths that optimize coverage and minimize overlap.
Always on course.
During operation, F200 Max continuously monitors vehicle position and detects any deviation from your planned path, alerting you if any corrections is needed.
Simpler smarter fields.
From planning to completion, F200 Max keeps your data in sync. Use Field Management* to bundle lines, boundaries, and task data with specific field. Stay connected mid-operation via Farm Management System for real-time monitoring anytime, anywhere. When finished, export key data like prescription maps and line groups through GIS Data Transfer to any terminal or platform with ease.
*Advanced mode required.
